User Quota System

User Quota System#

The quota system tracks usage sessions and can block new spawns when a user lacks enough balance.

What Quota Controls#

When quota is enabled, the current flow is:

  1. a user chooses a resource and runtime on the spawn page

  2. the Hub computes the estimated cost from the selected accelerator rate and runtime

  3. the Hub blocks the spawn if the user cannot afford it

  4. a usage session is recorded while the server runs

  5. quota is deducted when the session ends

Configuration#

Quota is configured under custom.quota.

custom:
  quota:
    enabled: null
    cpuRate: 1
    minimumToStart: 10
    defaultQuota: 0
    refreshRules: {}

Field Meanings#

Field

Meaning

enabled

Explicit on/off. When null, quota auto-disables for auto-login and dummy

cpuRate

Per-minute cost for CPU-only sessions

minimumToStart

Minimum balance required before any spawn can start

defaultQuota

Initial balance granted to new users when their quota record is created

refreshRules

Scheduled balance refresh rules implemented as CronJobs

Accelerator Rates#

Accelerator-specific rates come from custom.accelerators.*.quotaRate.

custom:
  accelerators:
    strix-halo:
      quotaRate: 3
    r9700:
      quotaRate: 4

The effective estimated cost is:

quota cost = runtime_minutes × selected accelerator rate

If no accelerator is selected, the CPU rate is used.

Auto-Enable Behavior#

When custom.quota.enabled is left as null:

  • auto-login and dummy default to quota disabled

  • github and multi default to quota enabled

Default Quota For New Users#

defaultQuota is applied when a user first gets a quota record.

Operationally this means:

  • 0 keeps new users at zero until an admin grants balance

  • a positive value gives them an initial starting balance automatically

Unlimited Quota#

The platform supports unlimited users.

In the current admin UI, unlimited quota can be set by entering:

  • -1

  • ∞

  • unlimited

Web Admin Operations#

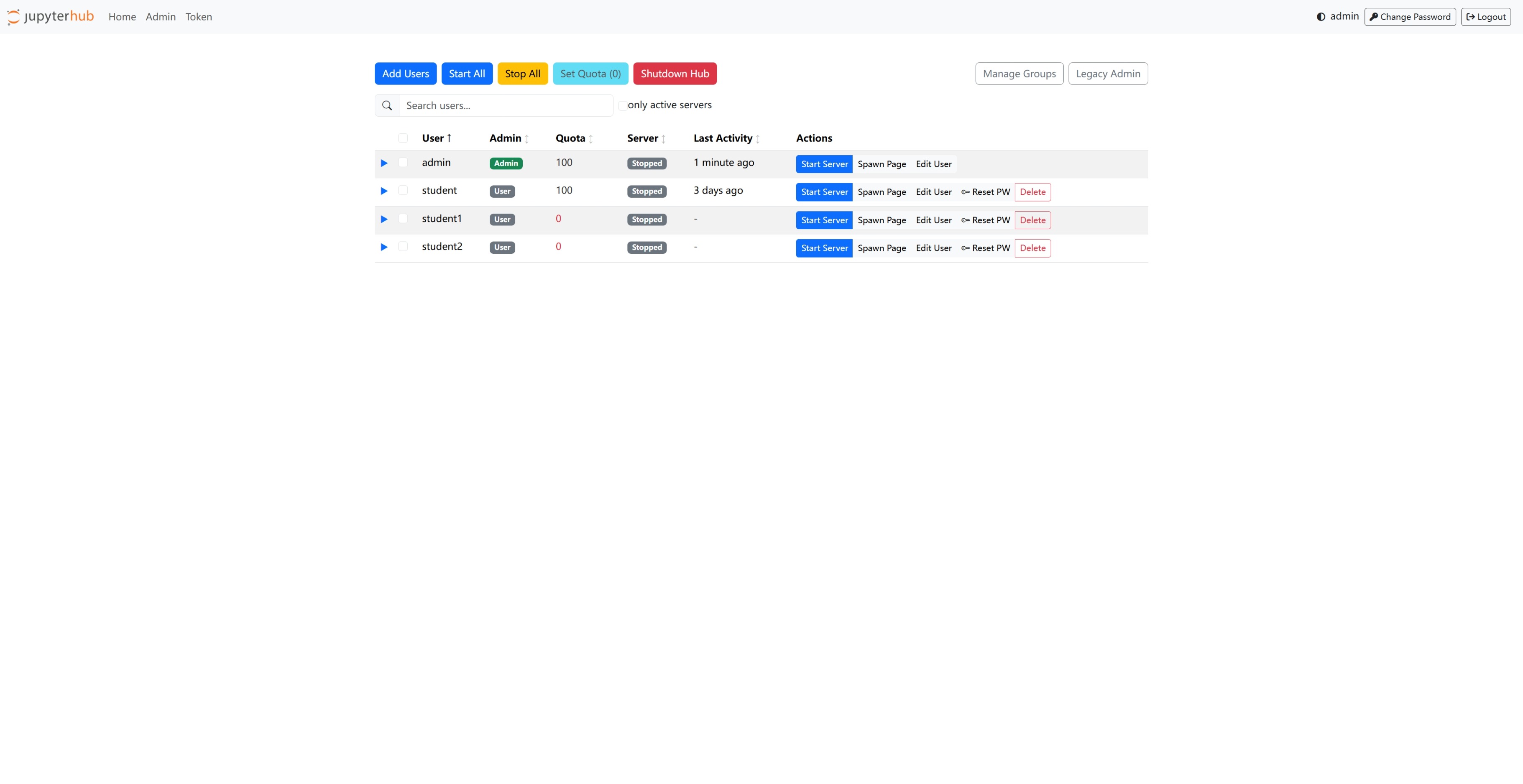

The current /hub/admin/users page supports:

  • inline per-user quota editing

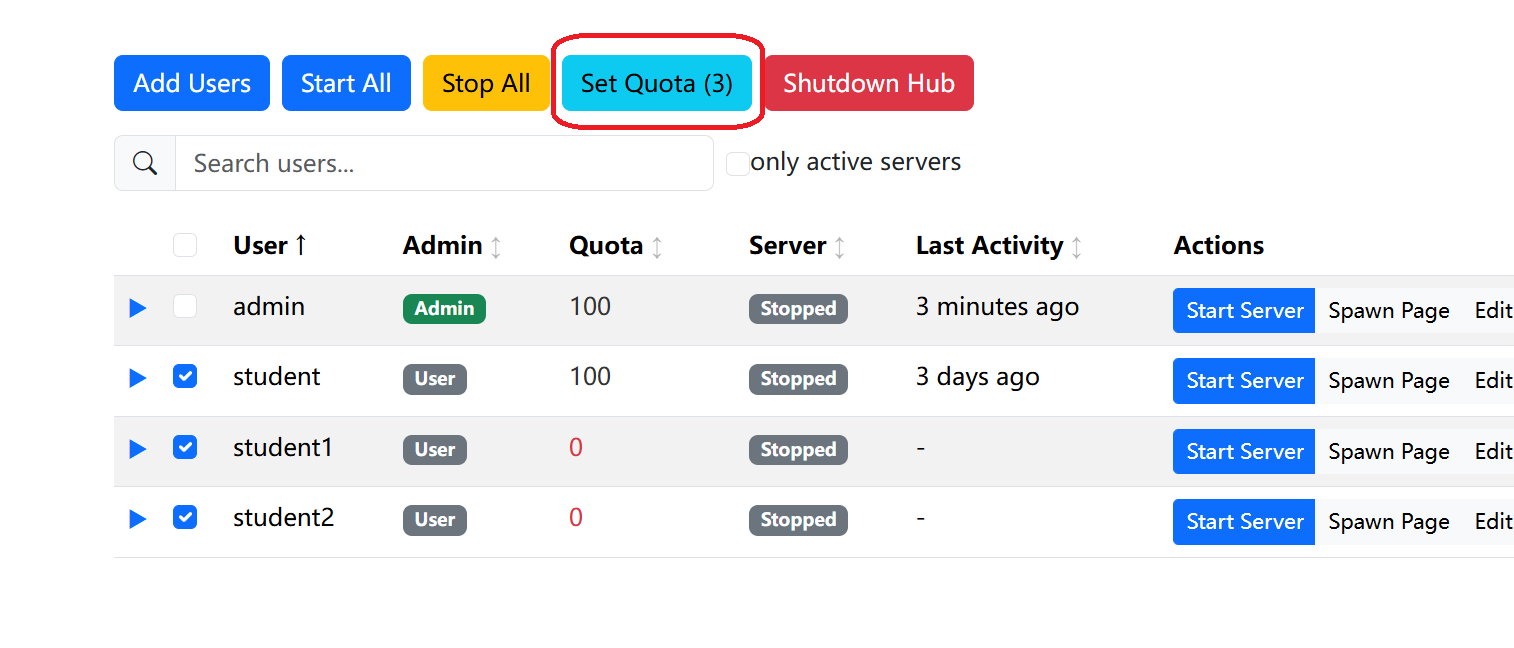

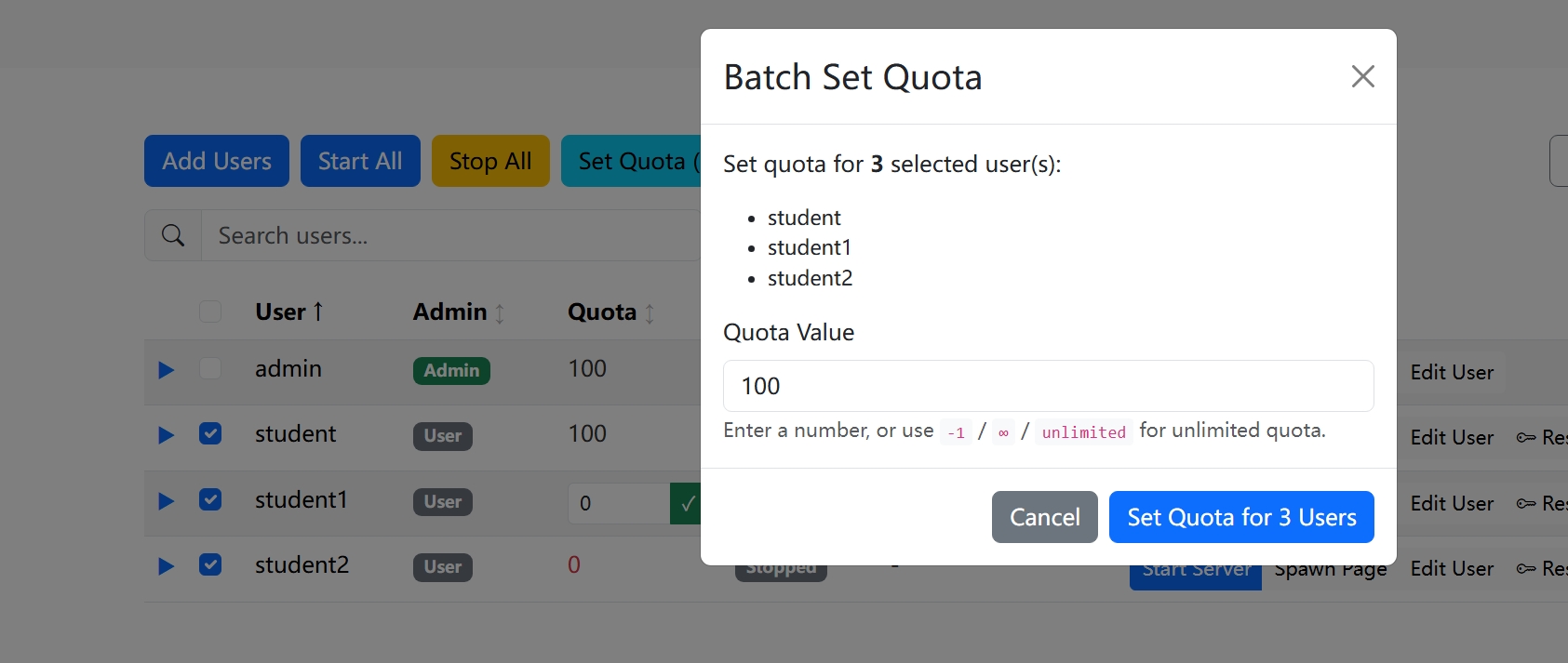

  • batch quota updates for selected users

  • toggling unlimited quota

  • viewing current balances alongside server status

The admin UI also includes a Refresh Quota action that can apply a global add-or-set operation to all users.

Admin API Endpoints#

The current quota handlers expose:

  • GET /admin/api/quota/

  • POST /admin/api/quota/<username>

  • POST /admin/api/quota/batch

  • POST /admin/api/quota/refresh

  • GET /api/quota/rates

  • GET /api/quota/me

These endpoints are used by the admin UI and user-facing spawn experience.

Scheduled Quota Refresh Rules#

refreshRules allow periodic top-ups or resets.

Example:

custom:
  quota:
    refreshRules:
      daily-topup:
        enabled: true
        schedule: "0 0 * * *"
        action: add
        amount: 100
        maxBalance: 500
        targets:
          includeUnlimited: false
          balanceBelow: 400

Supported rule concepts include:

  • action: add or set

  • amount

  • maxBalance

  • minBalance

  • filters such as includeUnlimited, balanceBelow, balanceAbove, includeUsers, excludeUsers, and usernamePattern

These rules create Kubernetes CronJobs during deployment.

Useful verification commands:

kubectl -n jupyterhub get cronjobs -l app.kubernetes.io/component=quota-refresh
kubectl -n jupyterhub get jobs -l app.kubernetes.io/component=quota-refresh
kubectl -n jupyterhub logs -l app.kubernetes.io/component=quota-refresh --tail=50

CLI Operations#

The repository still includes quota commands in scripts/manage_users.py.

Examples:

python scripts/manage_users.py set-quota user1 user2 --amount 1000
python scripts/manage_users.py add-quota user1 user2 --amount 100
python scripts/manage_users.py list-quota

These commands currently work by kubectl exec into deployment/hub and calling the in-pod quota manager.

Runtime Behavior Details#

Current implementation details worth knowing:

  • new users get a quota record on first use

  • defaultQuota is applied at record creation time

  • usage sessions are tracked even when quota deduction is disabled

  • unlimited users skip balance deduction

  • insufficient balance blocks spawn before the server starts

User-Facing APIs#

Authenticated users can inspect current quota behavior through:

  • GET /api/quota/me

  • GET /api/quota/rates

Those responses are used to show balance, enabled state, rates, and minimumToStart in the current UI flows.

Troubleshooting#

User Cannot Start A Server#

Check:

  • the user’s current balance

  • the selected accelerator’s quotaRate

  • minimumToStart

  • whether the user is marked unlimited

Refresh Rules Did Not Run#

kubectl -n jupyterhub get cronjobs -l app.kubernetes.io/component=quota-refresh
kubectl -n jupyterhub get jobs -l app.kubernetes.io/component=quota-refresh

If no CronJobs exist, verify that the rule is enabled and present in the values file used for the last deployment.

CLI Quota Command Fails#

Because the CLI commands use kubectl exec, verify:

  • you are targeting the correct namespace

  • deployment/hub exists and is healthy

  • your kubectl context points at the correct cluster
