Image Classification using Yolov10

Image Classification using Yolov10#

YOLOv10: Real-Time End-to-End Object Detection. YOLOv10 achieves state-of-the-art performance with significantly reduced computational overhead.

🛠️ Supported Hardware#

This notebook can run in a CPU or in a GPU.

✅ AMD Instinct™ Accelerators
✅ AMD Radeon™ RX/PRO Graphics Cards
✅ AMD EPYC™ Processors
✅ AMD Ryzen™ (AI) Processors

Suggested hardware: AI PC powered by AMD Ryzen™ AI Processors

⚡ Recommended Software Environment#

Linux

Windows

🎯 Goals#

Show you how to download several models from HuggingFace
Run Yolov10 on an AMD platform
Run inference with Yolov10 on an image
Compare Yolov10 different model sizes

🚀 Run Yolov10 on an AMD Platform#

Import packages, in particular Hugging Face transformers that helps downloading the model from the Hugging Face repository.

from ultralytics import YOLOv10
from PIL import Image
import torch
from IPython.display import display

Get the yolov10 (medium) pre-trained model using the YOLOv10 API

model = YOLOv10.from_pretrained('jameslahm/yolov10m')

Note

You can print the the model to see the different layers.

print(model)

If a GPU is available, move the model to the GPU

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model.to(device)
print(f'{device=}')

device=device(type='cuda')

Let’s run inference using a sample image and then display the result.

test_img = '000000039769.jpg'
result = model.predict(source=f'http://images.cocodataset.org/val2017/{test_img}', save=True)
image = Image.open(f'{result[0].save_dir}/{test_img}')
display(image)

Downloading http://images.cocodataset.org/val2017/000000039769.jpg to '000000039769.jpg'...

100%|█████████████████████████████████████████████████████████████████████████████████████████████████| 169k/169k [00:00<00:00, 605kB/s]

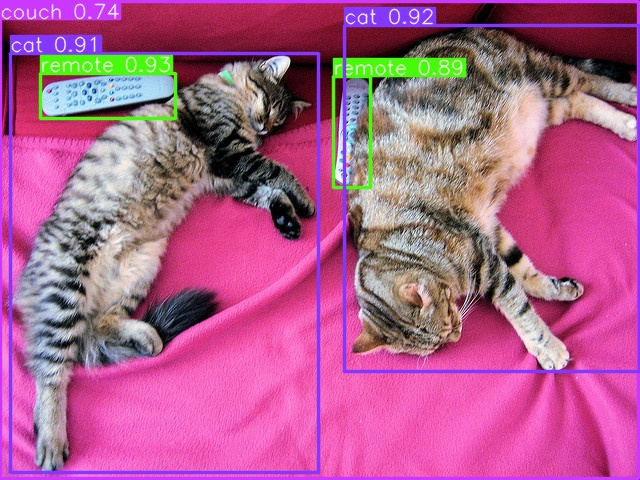

image 1/1 /ROCM_APP/get-started/hf/000000039769.jpg: 480x640 2 cats, 1 couch, 2 remotes, 1437.8ms
Speed: 1.4ms preprocess, 1437.8ms inference, 149.1ms postprocess per image at shape (1, 3, 480, 640)
Results saved to runs/detect/predict

../../_images/1018f96ddbf81b306d98ac67f3df8c261e723081338e60a3da2ba5d0ae8ba764.png

Let’s run multiple inferences inside of a loop

images = ['000000039769.jpg', '000000002157.jpg', '000000032610.jpg', '000000037777.jpg', '000000057597.jpg', '000000087470.jpg', '000000098520.jpg']
for test_img in images:
    result = model.predict(source=f'http://images.cocodataset.org/val2017/{test_img}', save=True)
    image = Image.open(f'{result[0].save_dir}/{test_img}')
    display(image)

Found http://images.cocodataset.org/val2017/000000039769.jpg locally at 000000039769.jpg
image 1/1 /ROCM_APP/get-started/hf/000000039769.jpg: 480x640 2 cats, 1 couch, 2 remotes, 13.6ms
Speed: 1.3ms preprocess, 13.6ms inference, 1.2ms postprocess per image at shape (1, 3, 480, 640)
Results saved to runs/detect/predict

Downloading http://images.cocodataset.org/val2017/000000002157.jpg to '000000002157.jpg'...

100%|█████████████████████████████████████████████████████████████████████████████████████████████████| 122k/122k [00:00<00:00, 385kB/s]

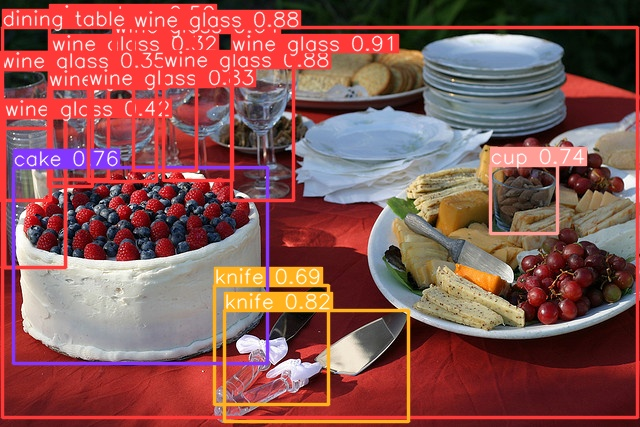

image 1/1 /ROCM_APP/get-started/hf/000000002157.jpg: 448x640 11 wine glasss, 2 cups, 2 knifes, 1 cake, 1 dining table, 1410.0ms
Speed: 1.9ms preprocess, 1410.0ms inference, 1.0ms postprocess per image at shape (1, 3, 448, 640)
Results saved to runs/detect/predict

../../_images/0e33b5ead3bc854d432c5a8f79950eb8118a2e0b020d9eb34693f738e20bc586.png

Downloading http://images.cocodataset.org/val2017/000000032610.jpg to '000000032610.jpg'...

100%|█████████████████████████████████████████████████████████████████████████████████████████████████| 146k/146k [00:00<00:00, 446kB/s]

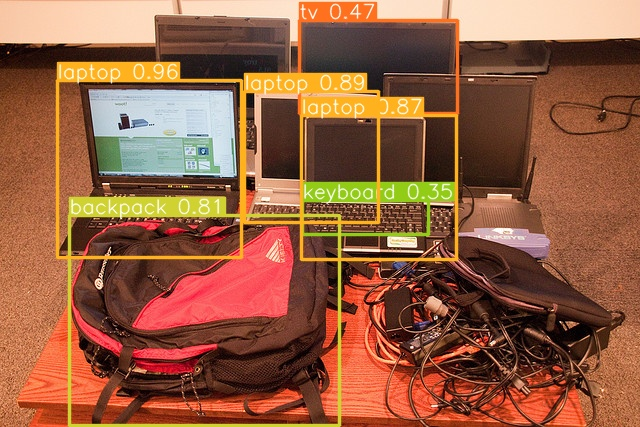

image 1/1 /ROCM_APP/get-started/hf/000000032610.jpg: 448x640 1 backpack, 1 tv, 3 laptops, 1 keyboard, 14.3ms
Speed: 1.5ms preprocess, 14.3ms inference, 1.0ms postprocess per image at shape (1, 3, 448, 640)
Results saved to runs/detect/predict

../../_images/bcc4de1aa36fb2694d56f3fc70fc6693e9293959edaa2ff643a35e4d075d2f3d.png

Downloading http://images.cocodataset.org/val2017/000000037777.jpg to '000000037777.jpg'...

100%|███████████████████████████████████████████████████████████████████████████████████████████████| 39.9k/39.9k [00:00<00:00, 447kB/s]

image 1/1 /ROCM_APP/get-started/hf/000000037777.jpg: 448x640 1 banana, 5 oranges, 2 chairs, 1 dining table, 1 oven, 1 refrigerator, 16.0ms
Speed: 2.6ms preprocess, 16.0ms inference, 1.1ms postprocess per image at shape (1, 3, 448, 640)
Results saved to runs/detect/predict

../../_images/117c1926c4688d7be9d0a109f2a9b38939f3add4cd2bb30012867c67058f4f25.png

Downloading http://images.cocodataset.org/val2017/000000057597.jpg to '000000057597.jpg'...

100%|█████████████████████████████████████████████████████████████████████████████████████████████████| 193k/193k [00:00<00:00, 689kB/s]

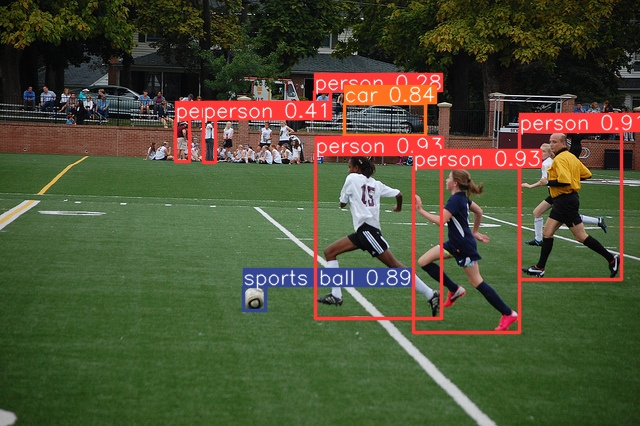

image 1/1 /ROCM_APP/get-started/hf/000000057597.jpg: 448x640 6 persons, 1 car, 1 sports ball, 11.8ms
Speed: 1.5ms preprocess, 11.8ms inference, 1.0ms postprocess per image at shape (1, 3, 448, 640)
Results saved to runs/detect/predict

../../_images/7d4d96e60c28d218afb50f7dde43bf9163712b8a3406de3e8c78277445efe7a6.png

Downloading http://images.cocodataset.org/val2017/000000087470.jpg to '000000087470.jpg'...

100%|█████████████████████████████████████████████████████████████████████████████████████████████████| 238k/238k [00:00<00:00, 558kB/s]

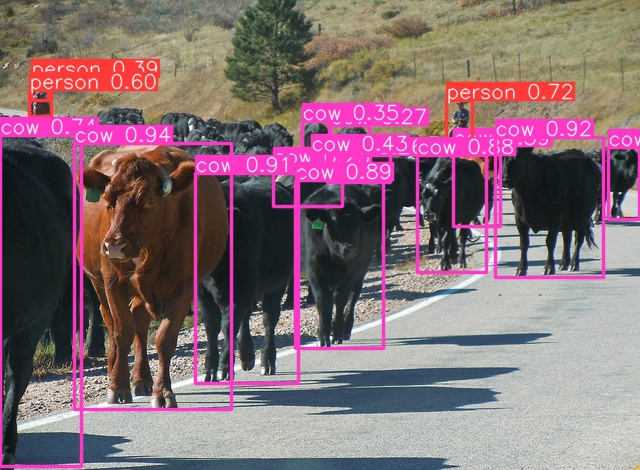

image 1/1 /ROCM_APP/get-started/hf/000000087470.jpg: 480x640 3 persons, 13 cows, 13.1ms
Speed: 1.9ms preprocess, 13.1ms inference, 0.7ms postprocess per image at shape (1, 3, 480, 640)
Results saved to runs/detect/predict

../../_images/5487e1f12a710633854a503c9527b4a1c045202586768b769eac6382d97e321a.png

Downloading http://images.cocodataset.org/val2017/000000098520.jpg to '000000098520.jpg'...

100%|█████████████████████████████████████████████████████████████████████████████████████████████████| 118k/118k [00:00<00:00, 381kB/s]

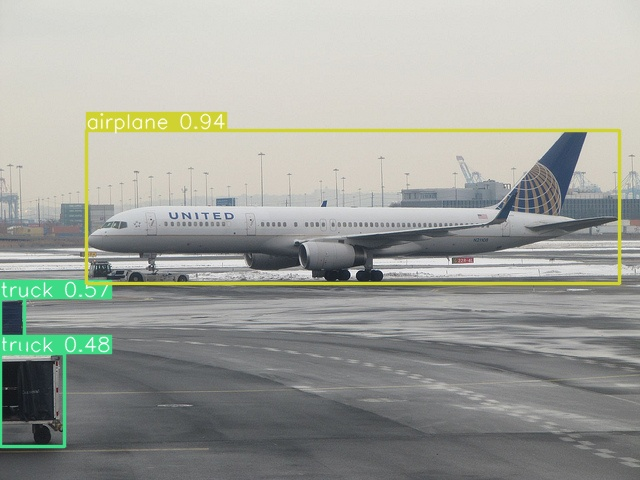

image 1/1 /ROCM_APP/get-started/hf/000000098520.jpg: 480x640 1 airplane, 2 trucks, 14.4ms
Speed: 2.4ms preprocess, 14.4ms inference, 1.0ms postprocess per image at shape (1, 3, 480, 640)
Results saved to runs/detect/predict

../../_images/0a8f76dcc7dff4c5e6b75999713ee10f144ac780543c4af5073ea2ff84283d28.png

There are a number of Yolov10 models available, each with a different number of parameters. Running the cell below you will download 6 different Yolov10 models and observe the number of parameters and the size of each model.

models = ['yolov10n', 'yolov10s', 'yolov10m', 'yolov10b', 'yolov10l', 'yolov10x']

def model_size(model):
    param_size = 0
    for param in model.parameters():
        param_size += param.nelement() * param.element_size()
    buffer_size = 0
    for buffer in model.buffers():
        buffer_size += buffer.nelement() * buffer.element_size()
    return param_size + buffer_size

for m in models:
    model = YOLOv10.from_pretrained(f'jameslahm/{m}')
    size_all_mb =  (model_size(model)) / 1024**2
    total_params = sum(p.numel() for p in model.parameters())
    print(f'Model: {m} with {total_params:10,} parameters, size: {size_all_mb:7.3f}MB')

Model: yolov10n with  2,775,520 parameters, size:  10.667MB

Model: yolov10s with  8,128,272 parameters, size:  31.169MB
Model: yolov10m with 16,576,768 parameters, size:  63.494MB

Model: yolov10b with 20,574,384 parameters, size:  78.790MB

Model: yolov10l with 25,888,688 parameters, size:  99.132MB

Model: yolov10x with 31,808,960 parameters, size: 121.883MB

Tip

Exercise for the reader, replace the yolov10m model (second cell of this notebook) with any other Yolov10 model available and re run the notebook. Do you notice any difference in the accuracy of the classification?

SPDX-License-Identifier: MIT
